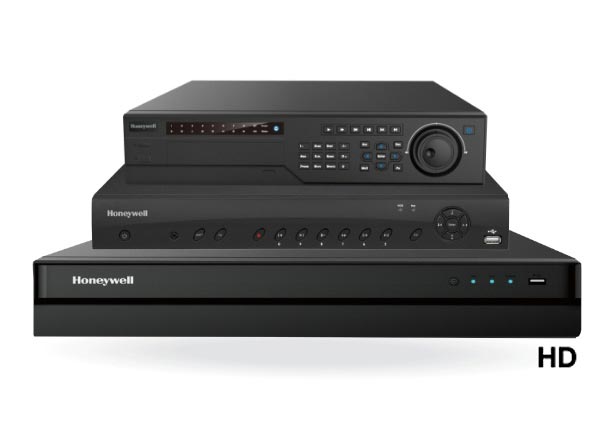

Honeywell’s Focus 4K Embedded NVRs offer Ultra HD 4K video resolution and high decoding capability. Choose from 8-, 16-, 32- or 64-channel NVRs with multiple internal hard drive options and support for expandable storage. With advanced features like email notification support, Quick setup wizard and real-time playback, this family of cost-effective, fully-featured NVRs are ideal for a wide range of security applications.
View 8 channels simultaneously with synchronised real-time playback from any monitor (Smartphone, tablet or laptop) and from anywhere.

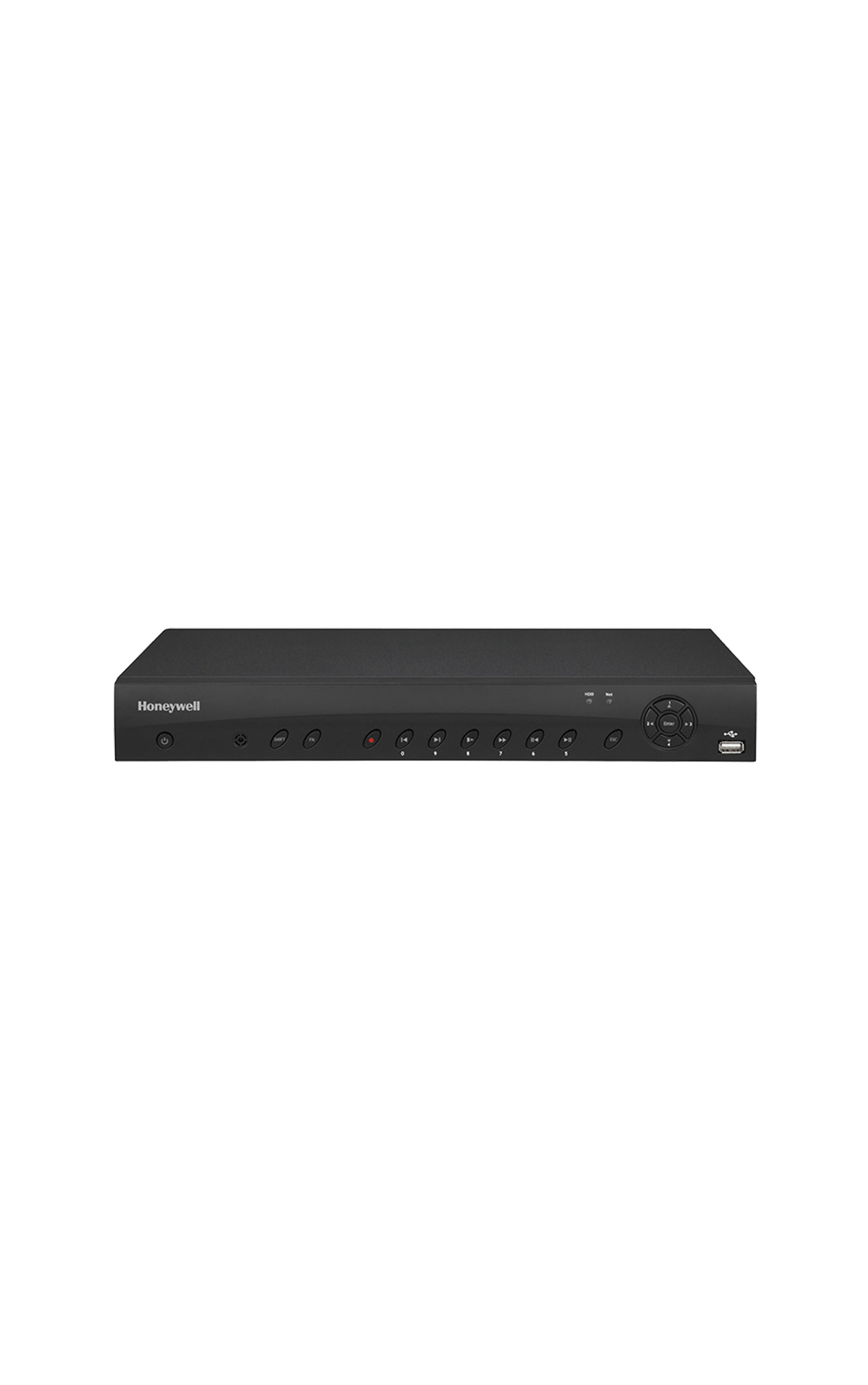

| Model No. | HEN08104 |
|---|---|
| SYSTEM | |
| MAIN PROCESSOR | Quad-core embedded processor |
| OPERATING SYSTEM | Embedded LINUX |
| VIDEO | |
| INPUTS | HEN08104: 8 Channels IP HEN16104: 16 Channels IP HEN32104: 32 Channels IP |
| AUDIO | |
| AUDIO INPUT/OUTPUT | 1 Channel Input/1 Channel Output, RCA |
| TWO-WAY COMMUNICATION | Supported |
| DISPLAY | |
| INTERFACE | 1 HDMI (up to 3840 × 2160); 1 VGA |
| RESOLUTION | 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720; 1024 × 768 |
| DISPLAY SPLIT | HEN08104: 1/4/8/9 HEN16104: 1/4/8/9/16 HEN32104: 1/4/8/9/16/25/36 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| FISHEYE VIDEO DE-WARPING | Supported in local and web user interface |
| RECORDING | |
| COMPRESSION | H.265/H.264/MJPEG/MPEG4 |
| RESOLUTION | 12 MP (4000 × 3000); 8 MP (3840 × 2160); 6 MP (3072 × 2048); 5 MP (2560 × 1920); 4 MP (2560 × 1440); 3 MP (2048 × 1520); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); CIf (352 × 288 / 352 × 240) |
| FRAME RATE | 1–15 fps (12 MP and 8 MP); 1–25/30 fps (rest of the resolutions) |
| RECORD BIT RATE | 320 Mbps |
| BIT RATE1 | 16 kbps ~ 20 Mbps, per channel |
| RECORDING MODE | Schedule (Regular/Continuous, Motion Detection, Alarm); Manual; Stop |
| RECORDING INTERVAL | 1 to 120 minutes (default 60 min) |
| PRE-EVENT RECORDING INTERVAL | 1 to 30 seconds |
| POST-EVENT RECORDING INTERVAL | 10 to 300 seconds |
| VIDEO DETECTION AND ALARMS | |
| TRIGGER EVENTS | Recording; PTZ; Tour; Alarm; Video Push; Email; FTP; Snapshot; Buzzer |
| VIDEO DETECTION | Motion Detection—MD Zones: 396 (22 × 18); Video Loss; Camera Blank |
| ALARM INPUT | 4 Channels |
| RELAY OUTPUT | 2 Channels |
| STORAGE | |
| INTERNAL HDD | 2 SATA ports, up to 16 TB |
| PLAYBACK AND BACKUP | |
| SYNC PLAYBACK | 1/4/8/16 (maximum 4-ch @ 8 MP, 8-ch @ 4 MP, or 16-ch @ 1080p simultaneous playback) |
| SEARCH MODE | Time/Date; Alarm; Motion Detection (MD); Exact Search (accurate to a second); Smart Search |
| PLAYBACK FUNCTION | Play; Pause; Stop; Rewind; Fast play; Slow play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup selection; Digital Zoom |
| BACKUP MODE COMPATIBILITY | USB Device; Network; Internal SATA burner |
| NETWORK | |
| ETHERNET | 1 RJ-45 port (10/100/1000 Mbps) |
| POE | HEN08104: 8 ports (802.3af/at) HEN16104: 16 ports (802.3af/at) HEN32104: 16 ports (802.3af/at) |
| SUPPORTED PROTOCOLS² | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P |
| MAXIMUM NUMBER OF USERS | 128 users |
| NETWORK THROUGHPUT | Input 320 Mbps; Output 320 Mbps |
| SMART PHONE COMPATIBILITY | iPhone; iPad; Android |
| AUXILIARY INTERFACE | |
| USB PORTS | 2 (1 rear USB3.0; 1 front USB2.0) |
| RS232 | 1 port (for PC communications and keyboard) |
| ELECTRICAL | |
| POWER SUPPLY | Single, 100~240 VAC, 50/60 Hz |
| POWER CONSUMPTION | HEN08104: 15.2 W max (no HDD) HEN16104: 14.5 W max (no HDD) HEN32104: 14.5 W max (no HDD) PoE: 25.5 W for a single port (130 W total) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 14°F to 131°F (–10°C to 55°C) |
| RELATIVE HUMIDITY | 10% to 90%, non-condensing |
| STORAGE TEMPERATURE | –4°F to 158°F (–20°C to 70°C), 0% to 90% relative humidity |
| PHYSICAL | |
| DIMENSIONS | 14.8” × 12.9” × 2.1” (375 mm × 327 mm × 53 mm) |
| WEIGHT (WITHOUT HDD) | 6.0 lb. (2.7 kg) |
| REGULATORY | |
| EMISSIONS | FCC Part 15B, EN55032: 2012 +AC: 2013, EN61000-3-2: 2014, EN61000-3-3: 2013 |
| IMMUNITY | EN50130-4: 2011+A1: 2014, EN55024: 2010+A1: 2015 |
| SAFETY | EU: EN60950-1 North America UL listed to UL/CSA 60950-1 |
| ROHS | EN50581: 2012 |
| Model No. | HEN08104 |
|---|---|
| HEN08104 | NVR, 8-Channel, H.265, 4K 12 MP, 2 SATA, 8 PoE, No HDD |
