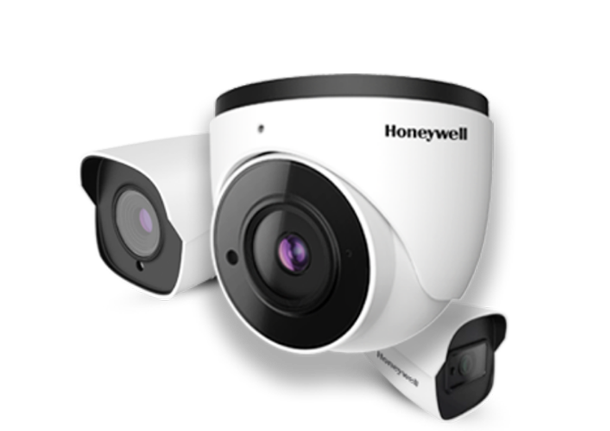

Built with Honeywell pedigree, Performance Pro Series cameras are available in both MFZ and Fixed configurations. Built to last, designed to deliver, featuring enhanced IR range, Motorized Focus and Zoom range of 2.8 ~ 12mm, dual power support and much more. Enjoy absolute peace of mind as the camera comes with encrypted HTTPS communication to ensure secure browser transmission. Go ahead, take your pick.
| Model No. | HP4B2 |
|---|---|
| OPERATIONAL | |
| VIDEO STANDARD | PAL/NTSC |
| IMAGE SENSOR | 1/2.7” CMOS |
| NUMBER OF PIXELS (H × V) | 2560(H) × 1440(V) |
| MINIMUM ILLUMINATION | 0.04 lux @ F2.2, AGC ON 0 lux with IR ON |
| S/N RATIO | > 50 dB |
| ELECTRONIC SHUTTER SPEED | 1/25s ~ 1/ 100,000s |
| IR DISTANCE | Distance up to 30 – 50 m |
| DAY/NIGHT | Auto/Day/Night/Timing |
| BACKLIGHT COMPENSATION | BLC, HLC |
| WHITE BALANCE | Auto/Indoor/Outdoor/Manual |
| WIDE DYNAMIC RANGE | e Digital WDR |
| NOISE REDUCTION | 3D DNR |
| PRIVACY MASKING | Off / On (4 Areas) |
| MOTION DETECTION | Support |
| REGION OF INTEREST | Support (3) |
| LENS | 2.8mm~12mm, MFZ |
| ANGLE OF VIEW | Horizontal: 94°~35.7° |
| VIDEO | |
| VIDEO COMPRESSION | H.265 / H.264 |
| RESOLUTION | 4MP(2560×1440), 3MP(2304×1296), 1080P(1920×1080), 720P(1280×720), D1(704×576), CIF(352×288), 480×240 |
| FRAME RATE | Main stream: 4MP/3MP/1080P(1~25fps) Sub stream: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps) Third stream: D1/CIF/480x240 (1~25fps) |
| BIT RATE CONTROL | CBR / VBR |
| BIT RATE | 64 Kbps ~ 5 Mbps |
| NETWORK | |
| ETHERNET | 10/100 Base-T Ethernet (RJ-45) |
| SUPPORTED WEB BROWSERS | Internet Explorer 11.0+ |
| SUPPORTED OS | Microsoft Windows 7/10 |
| INTEROPERABILITY | ONVIF Profile S, G |
| PROTOCOLS* | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, 802.1X, UDP, ICMP, ARP, TLS |
| MAXIMUM USERS ACCESS | 4 Users |
| SECURITY | User account and password protection, HTTPS, IP Filter, TLS1.2, AES-128/256 |
| MICRO SD | Micro SD/SDHC/SDXC card slot (128GB) |
| ELECTRICAL | |
| POWER SUPPLY | DC12V, PoE (IEEE 802.3af) (Class 3) |
| POWER CONSUMPTION | Max 9W |
| MECHANICAL | |
| DIMENSIONS | 217.7mm × 80.5mm × 80.5mm |
| PRODUCT WEIGHT | 0.65kg |
| MATERIAL | Metal housing with coating |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -30°C ~ 60°C (-22°F ~ 140°F) |
| RELATIVE HUMIDITY | Less than 90%, non-condensing |
| INGRESS PROTECTION | IP67 |
| REGULATORY | |
| Certification | CE, FCC, RoHS |
| Model No. | |
|---|---|

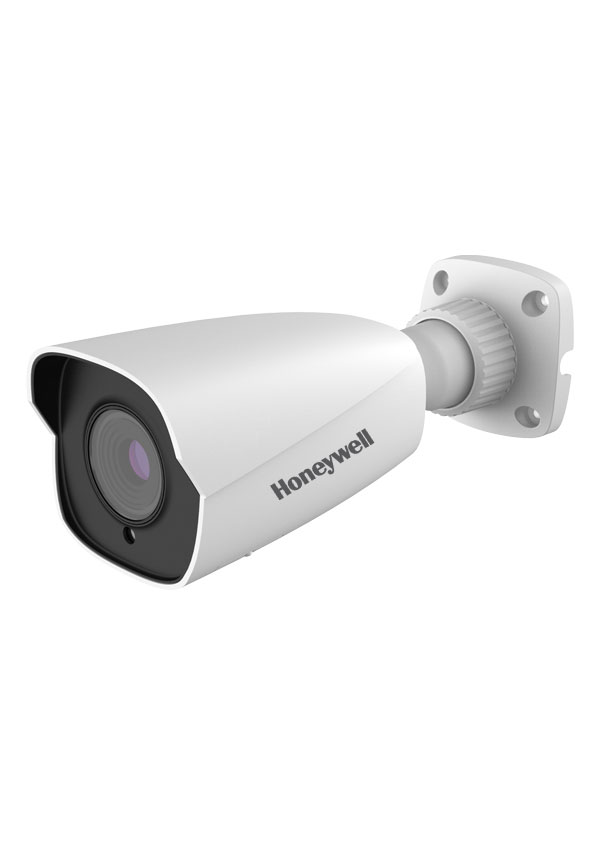

| HP4B2 | 4MP Network Bullet IR Camera, TDN, 1/2.7” CMOS, 2.8mm~12mm MFZ, H.265, PoE, IP67 |
| Documentation | Size | Release Date | File Type | Download |
|---|---|---|---|---|
| Datasheet | 250.38 KB | 28.02.2022 | Download | |
