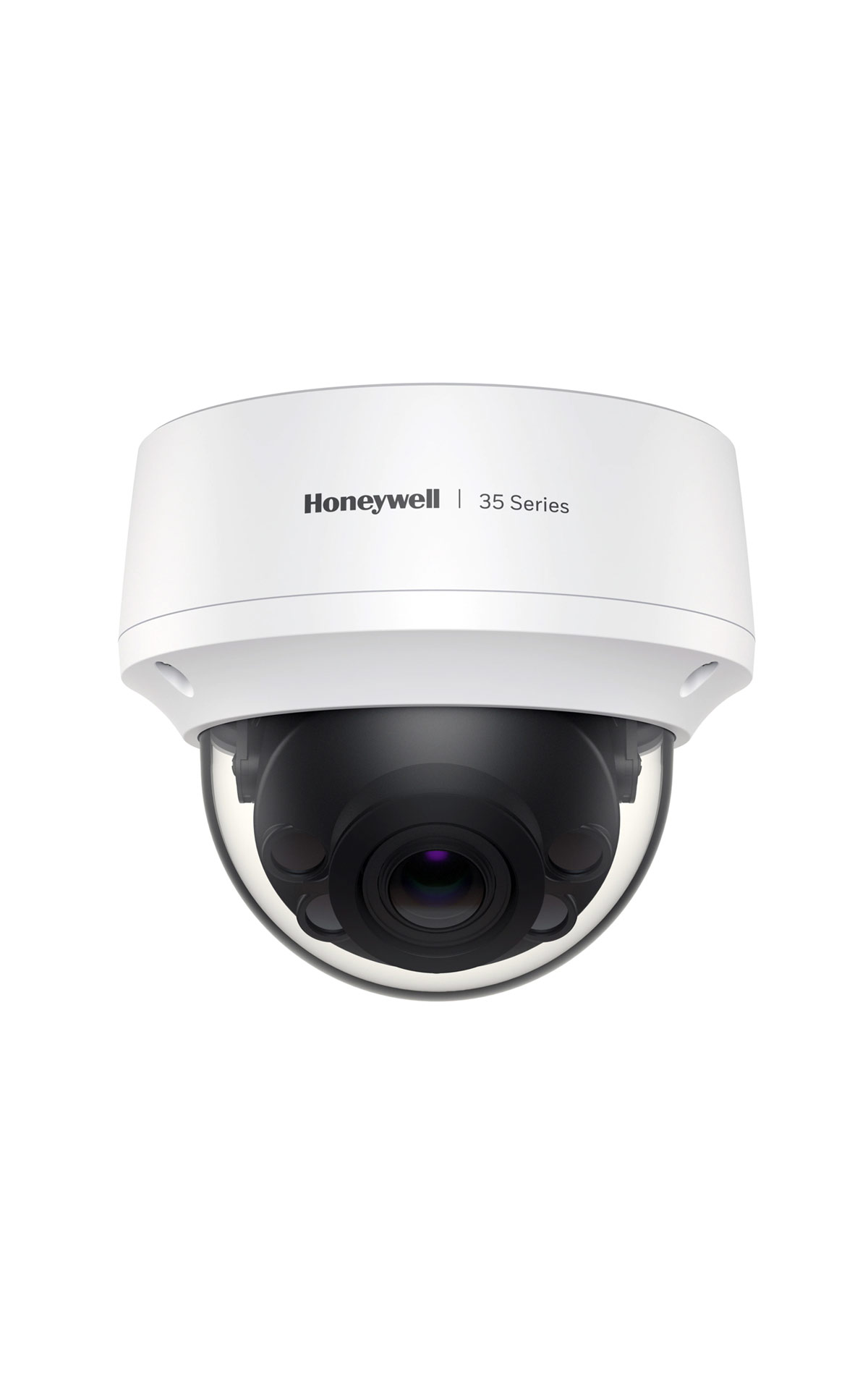

| OPERATIONAL |
| Video Standard |
NTSC/PAL |
| Scanning System |
Progressive |
| Image Sensor |
HC35W43R2: 1/2.7” CMOS
HC35W45R2/HC35W48R2: 1/2.8” CMOS |
| Sensor size (H x V) |
HC35W43R2: 4.608 mm x 2.592 mm
HC35W45R2: 5.184 mm x 3.888 mm
HC35W48R2: 5.568 mm x 3.132 mm |
| Number Of Pixels (H x V) |
HC35W43R2: 2304 x 1296
HC35W45R2: 2592 x 1944
HC35W48R2: 3840 x 2160 |
| Minimum Illumination (Color/BW) |
HC35W43R2 / HC35W45R2: 0.005 Lux / F1.6 (Color, 30 IRE), 0 Lux / F1.6 (IR ON)
HC35W48R2: 0.007 Lux / F1.6 (Color, 30 IRE), 0 Lux / F1.6 (IR ON) |
| S/N Ratio |
50 dB |
| Electronic Shutter Speed |
1/8 ~ 1/32,000 |
| IR Distance |
up to 50 M |
| IR Light Control |
Smart IR (Auto/Manual)/OFF |
| IR Light Number |
4 |
| Day/Night |
Auto (ICR) / Color / BW |
| Backlight Compensation |
WDR, BLC, HLC |
| White Balance |
Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual |
| Gain Control |
0~100% |
| Wide Dynamic Range |
120 dB |
| Noise Reduction |
2D/3D DNR |
| Lens |
2.7-13.5 mm, DC-Iris,F1.6-F3.3, MFZ |
| Angle Of View |
HC35W43R2: H: H:88°-24°, V:48°-14°
HC35W45R2: H:96°-26°, V:69°-20°
HC35W48R2: H:105°-32°, V:55°-18° |
| Privacy Masking |
Off / On (4 Areas) |
| Defog |
HC35W43R2: Not supported
HC35W45R2/HC35W48R2: Supported |
| Local Storage |
Micro SD (up to 256 GB) |
| Alarm Inputs / Outputs |
HC35W43R2: Not supported
HC35W45R2/HC35W48R2: 1 In / 1 Out |
| Pan Range |
0°-355° |
| Tilt Range |
0°-75° |
| Rotation Range |
0°-354° |
| VIDEO |
| Video Compression |
H.265 HEVC/H.264/MJPEG, Smart Codec |
| Resolution |
HC35W43R2
1st: 2304 x 1296 / 1920 x 1080 / 1280 x 720
2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC)
3rd: 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) / 320 x 240
HC35W45R2
1st: 2592 x 1944 / 2592 x 1520 / 1920 x 1080 / 1280 x 720
2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC)
3rd: 1920 x 1080 (MAX 12 fps) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) / 320 x 240
HC35W48R2
1st: 3840 x 2160 / 2592 x 1944 / 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720
2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC)
3rd: 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) / 320 x 240 |
| Number Of Video Streams |
3 (2 for encryption) |
| Frame Rate* |
MAX 30 fps |
| Bit Rate* |
HC35W43R2: 100K ~ 6 Mbps
HC35W45R2: 100K~12 Mbps
HC35W48R2: 100k~16 Mbps |
| AUDIO |
| Audio Compression |
HC35W43R2: Not supported
HC35W45R2/HC35W48R2: G.711A / G.711U |
| Audio Stream |
HC35W43R2: Not supported
HC35W45R2/HC35W48R2: 2-Way, Full duplex |
| Audio Interface |
HC35W43R2: Not supported
HC35W45R2/HC35W48R2: Line In/Out |
| NETWORK |
| Ethernet |
10 Base-T/100 Base-TX Ethernet (RJ-45) |
| Supported Web Browsers |
Chrome/Edge |
| Supported OS |
Microsoft Windows 10 |
| Protocols** |
IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interoperability |
HC35W43R2: ONVIF Profile G/S/T
HC35W45R2/HC35W48R2: ONVIF Profile G/S/T/M |
| Maximum Users Access |
10 Users |
| Security |
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance |
| Languages Supported |
Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish |
| EVENTS/ANALYTICS |
| Built-in Video Analytics |
HC35W43R2: Motion Detection, Scene Change
HC35W45R2: People Counter, Multi Loitering, Intrusion, Scene Change, Smart Motion Detection (SMD), Motion Detection, Face Detection, Line Crossing Detection
HC35W48R2: People Counter, Multi Loitering, Intrusion, Scene Change, Smart Motion Detection (SMD), Motion Detection, Face Detection, Line crossing Detection, Unattended Object Detection, Missing Object Detection |
| Event type |
HC35W43R2: Video motion detection,Recording notification
HC35W45R2/HC35W48R2: Video motion detection, Alarm input, Recording notification, Scene change |
| Event linkage |
HC35W43R2: Event notification using Email and MicroSD card
HC35W45R2/HC35W48R2: Event notification using digital output, Email and MicroSD card |
| Region Of Interest |
8 |
| ELECTRICAL |
| Power Supply |
DC12V, PoE (IEEE 802.3af) (Class 0) |
| Power Consumption (Max) |
HC35W43R2: MAX 5.5 W
HC35W45R2: MAX 6 W
HC35W48R2: MAX 6.7W |
| MECHANICAL |
| Dimensions |
Ø130.0 mm × 112.3 mm (Ø5.12” × 4.42”) |
| Dome Diameter |
Ø96.0 mm (3.78”) |
| Product Weight |
0.86 kg (1.90 lb) |
| Package Weight |
1.05 kg (2.31 lb) |
| Body Material |
Die-cast aluminium housing |
| Color |
Camera Body: RAL 9003 (Signal White)
Front/Lens Facings: Pantone Black |
| ENVIRONMENTAL |
| Operating Temperature |
Starting Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Working Temperature: -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Relative Humidity |
Less than 90 %, non-condensing |
| Ingress Protection |
IP66/IP67 |
| Impact Resistance |
IK10 |
| REGULATORY |
| Emissions |
FCC PART 15, CE (EN 55032), Complies with RCM and UKCA |
| Immunity |
CE(EN 50130-4), Complies with RCM and UKCA |
| Safety |
BIS as per IS 13252(Part 1):2010/ IEC 60950-1:2005, UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with RCM and UKCA |
| RoHS |
CE(EN 63000),UAE(Cabinet Decree No.10 of 2017) |
| Country of Origin |
India |
