Providing audio along with video streams, the IP CCTV cameras deliver a better video surveillance experience with high-resolution images and reduced storage requirements. It is the high-clarity images and clear video streams that greatly help in the effective analysis of the video feed in the occurrence of an intrusion.

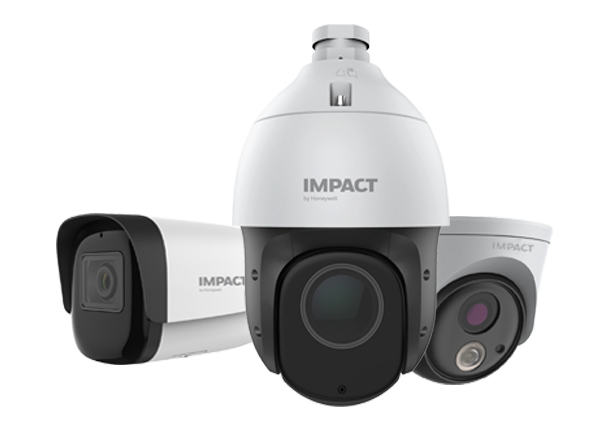

The new Impact IP series of cameras provide high-quality yet affordable surveillance for small and medium businesses which include small retail shops, gyms, schools, residential homes, etc. The new series includes high resolution IP IR cameras, in both eyeball dome and bullet configurations, and comes with fixed and variable lens options. The new Impact IP series caters to all kinds of customer applications. The cameras come with various variants of IR LEDs to provide best-in-class, effective and efficient surveillance even during the night. The cameras are IP67 rated which makes them resilient for any outdoor applications as well.

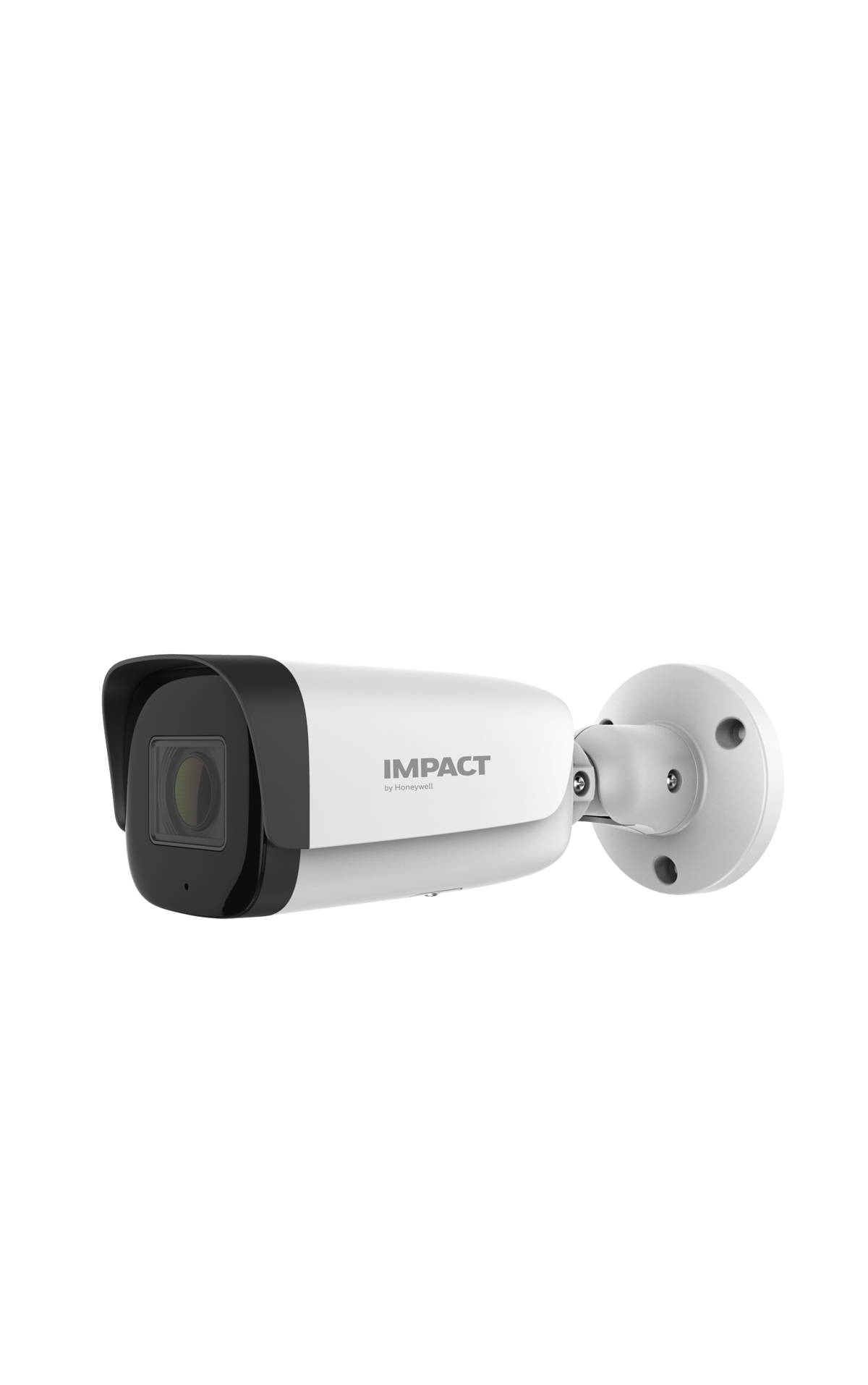

| Model No. | I-HIB5PI-VS |
|---|---|
| CAMERA | |
| Image Sensor | 1/2.7” CMOS |
| Signal System | PAL/NTSC |
| Min Illumination | Color: 0.002Lux@ (F2.0, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Bracket Pan 0~340°, tilt 0~75°, roate 0~360° |
| Lens | |
| Lens Type | Motorized |
| Focus | 2.8-12mm |
| Lens Mount | 14 |
| Aperture | F1.6~F3.3, Fixed |
| FOV | Horizontal field of view: 100.4°~26.8° |
| ILLUMINATOR | |
| IR Range | Up to 80m |
| IR LEDS | 1 |
| Wavelength | 850nm |
| COMPRESSION STANDARD | |
| Video Compression | IH+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U/ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| IMAGE | |
| Max. Resolution | 2592X1520 |
| Main Stream | PAL: 25fps (2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x720) NTSC: 25fps (2592x1520, 2560x1440), 30fps (2304x1296, 1920x1080,1280x720) |
| Sub Stream | PAL: 25fps (704x576, 704x288, 640x360, 352x288) NTSC: 30fps (704x480, 704x240, 640x360, 352x240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| OSD | 16x16, 32x32, 48x48, 64x64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| FEATURE | |
| Alarm Trigger | Motion Detection, Mask Alarm, IP Address Conflict |
| Video Analytics | Tripwire, Perimeter |
| NETWORK | |
| Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
| Remote Connection | ≤7 |
| Client | IH-VIEW |
| Web Version | Web5 |
| INTERFACE | |
| Communication interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | Mic in |
| GENERAL | |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| Web Client Language | English |
| Operating Conditions | -30°C ~ 60°C, 0 ~ 95% RH |
| Power Supply | DC 12V±25%, PoE (802.3af) |
| Power Consumption | MAX: 7.5W (12V) MAX: 9W (PoE) |
| Protection | IP67, Lightning protection, surge protection |
| Dimensions | 239x90x90mm (9.41x3.54x3.54inch) |
| Weight | 0.93Kg (2.05lb) |
| Documentation | Size | Release Date | File Type | Download |
|---|---|---|---|---|
| Datasheet | 441.06 KB | 16.09.2021 | Download | |
