| OPERATIONAL |
| Video Standard |
NTSC/PAL |
| Scanning System |
Progressive |
| Image Sensor |

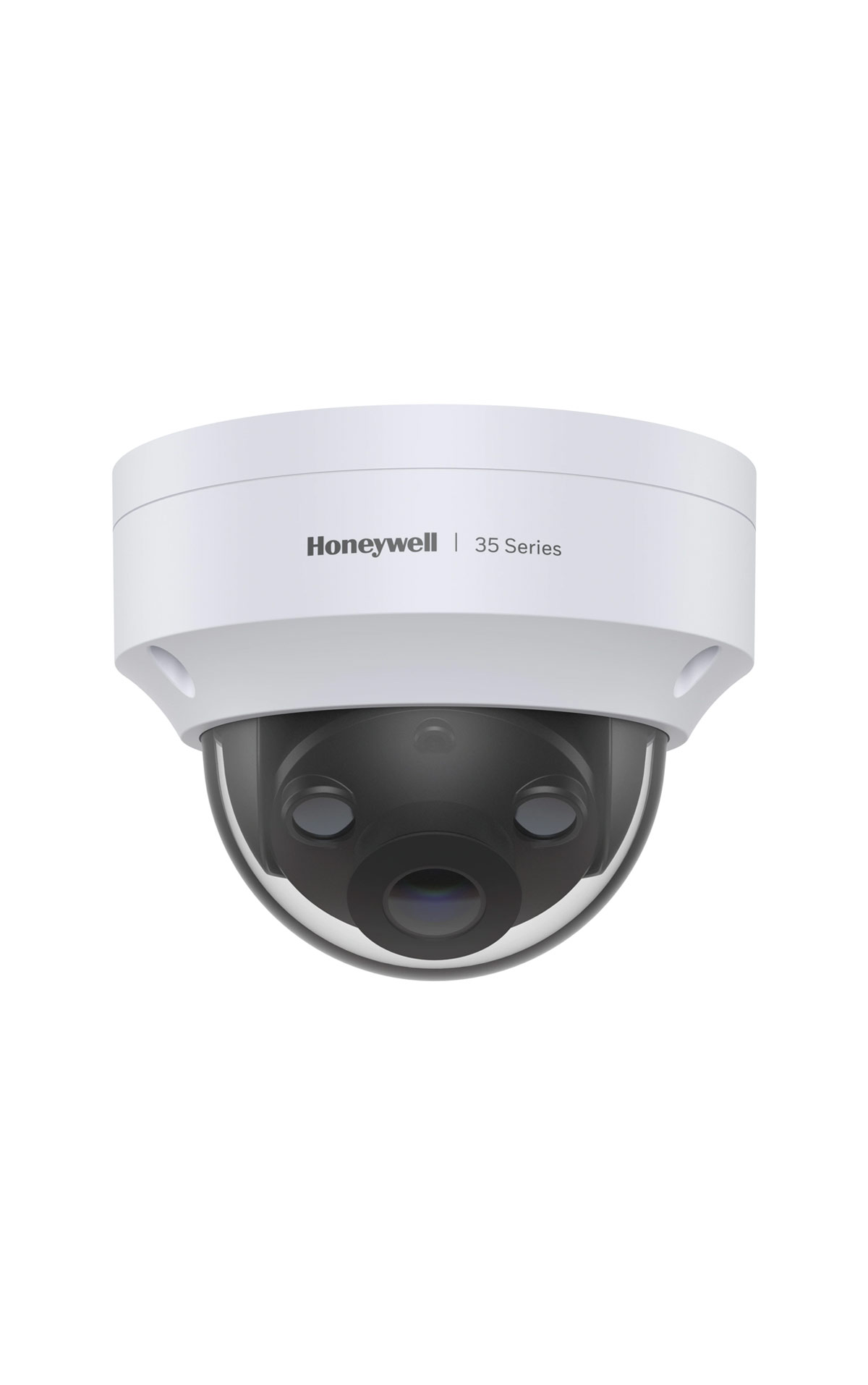

HC35W43R3: 1/2.7” CMOS |
| Sensor size (H x V) |
HC35W43R3: 4.608 mm x 2.592 mm |
| Number Of Pixels (H x V) |
HC35W43R3: 2304 x 1296 |
| Minimum Illumination (Color/BW) |
HC35W43R3: 0.005 Lux / F1.6 (Color,30 IRE), 0 Lux / F1.6 (IR ON) |
| S/N Ratio |
50 dB |
| Electronic Shutter Speed |
1/8 ~ 1/32,000 |
| IR Distance |
up to 40 M |
| IR Light Control |
Smart IR (Auto/Manual)/OFF |
| IR Light Number |
2 |
| Day/Night |
Auto (ICR) / Color / BW |
| Backlight Compensation |
WDR, BLC, HLC |
| White Balance |
Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual |
| Gain Control |
0~100% |
| Wide Dynamic Range |
120 dB |
| Noise Reduction |
2D/3D DNR |
| Lens |
HC35W43R3: 2.8 mm Fixed Iris, F1.6 |
| Angle Of View |
HC35W43R3: H:88°, V:47° |
| Privacy Masking |
Off / On (4 Areas) |
| Defog |
HC35W43R3: Not supported |
| Local Storage |
Micro SD (up to 256 GB) |
| Alarm Inputs / Outputs |
HC35W43R3: Not supported |
| Pan Range |
0°-330° |
| Tilt Range |
0°-75° |
| Rotation Range |
0°-337° |
| VIDEO |
| Video Compression |
H.265 HEVC/H.264/MJPEG, Smart Codec |
| Resolution |
HC35W43R3
1st: 2304 x 1296 / 1920 x 1080 / 1280 x 720
2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC)
3rd: 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) / 320 x 240 |
| Number Of Video Streams |
3 (2 for encryption) |
| Frame Rate* |
MAX 30fps |
| Bit Rate* |
HC35W43R3: 100K ~ 6 Mbps |
| AUDIO |
| Audio Compression |
HC35W43R3: Not supported |
| Audio Stream |
HC35W43R3: Not supported |
| Audio Interface |
HC35W43R3: Not supported |
| NETWORK |
| Ethernet |
10 Base-T/100 Base-TX Ethernet (RJ-45) |
| Supported Web Browsers |
Chrome/Edge |
| Supported OS |
Microsoft Windows 10 |
| Protocols** |
IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interoperability |
HC35W43R3: ONVIF Profile G/S/T |
| Maximum Users Access |
10 Users |
| Security |
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance |
| Languages Supported |
Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish |
| EVENTS/ANALYTICS |
| Built-in Video Analytics |
HC35W43R3: Motion Detection, Scene Change |
| Event type |
HC35W43R3: Video motion detection,Recording notification |
| Event linkage |
HC35W43R3: Event notification using Email and MicroSD card |
| Region Of Interest |
8 |
| ELECTRICAL |
| Power Supply |
DC12V, PoE (IEEE 802.3af) (Class 0) |
| Power Consumption (Max) |
HC35W43R3: MAX 3.6 W |
| MECHANICAL |
| Dimensions |
Ø110.0 mm × 85.6 mm (Ø4.33” × 3.37”) |
| Dome Diameter |
Ø78.2 mm (3.08”) |
| Product Weight |
0.56 kg (1.23 lb) |
| Package Weight |
0.65 kg (1.43 lb) |
| Body Material |
Die-cast aluminium housing |
| Color |
Camera Body: RAL 9003 (Signal White) Front/Lens Facings: Pantone Black |
| ENVIRONMENTAL |
| Operating Temperature |
Starting Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Working Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F) |
| Relative Humidity |
Less than 90 %, non-condensing |
| Ingress Protection |
IP66/IP67 |
| Impact Resistance |
IK10 |
| REGULATORY |
| Emissions |
FCC PART 15, CE (EN 55032), Complies with RCM and UKCA |
| Immunity |
CE(EN 50130-4), Complies with RCM and UKCA |
| Safety |
BIS as per IS 13252(Part 1):2010/ IEC 60950-1:2005, UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with RCM and UKCA |
| RoHS |
CE(EN 63000),UAE(Cabinet Decree No.10 of 2017) |
| Country of Origin |
India |
|
