Sensors

Reliable, stable and efficient building control

Honeywell's broad range of sensors measure the temperature, humidity, carbon monoxide (CO), carbon dioxide (CO2) and pressure to bring climate-controlled air into a room. They can be duct-mounted or wall-mounted, and offer excellent linearity with long term stability and reliability. The product range includes temperature-only sensor, humidity and temperature transducer, pressure transmitter, differential pressure transmitter, static pressure transmitter, CO2 sensor, CO sensor and water flow switch.

PRODUCT OFFERINGS

On-demand reliability

World-class products for temperature, CO2, humidity and pressure control – because comfort and safety both matter!

TEMPERATURE

CLEAN ROOM MONITORS

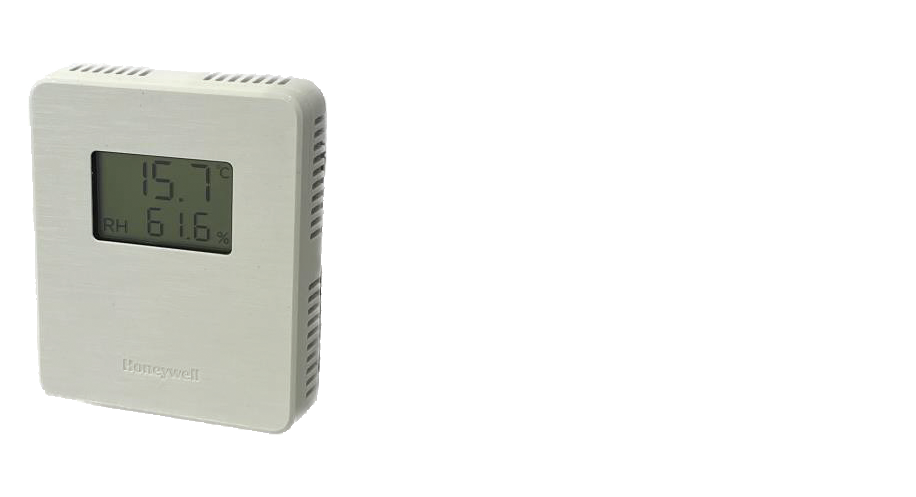

TEMPERATURE AND HUMIDITY

HUMIDITY SENSOR

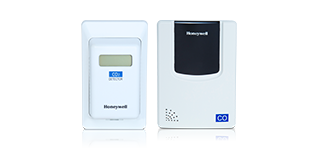

INDOOR AIR QUALITY

PRESSURE

AIR VELOCITY SENSORS

WATER FLOW SWITCH

DIFFERENTIAL PRESSURE SWITCH/TRANSMITTERS

HUMIDITSTAT

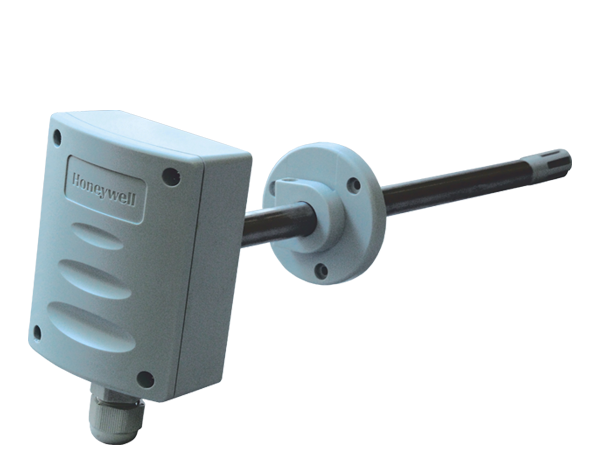

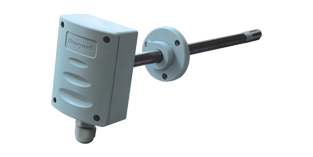

C7080A SERIES

Temperature/Humidity Duct Sensor
- Primary and/or secondary sensor for use with electronic control systems
- Temp Sensor NTC10K, NTC20K, Pt1000
- Operating range of 0 to 50°C
- Mounts on a flat duct or plenum surface or, for a plenum-rated application, in a standard utility conduit box
- Probe length of 300mm and a temperature sensor in the end
- Rugged 14mm diameter stainless steel insertion probe
DOWNLOAD Datasheet

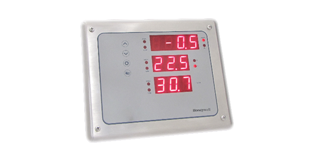

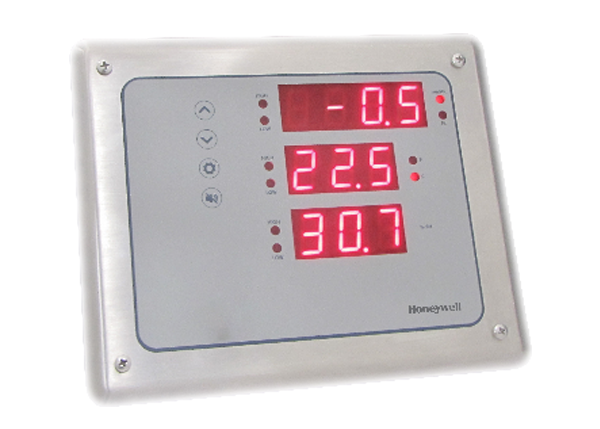

HCR3 series

Monitoring Of Confined Spaces
- CE and RoHS approved
- 3 -line display (Relative Humidity, Temperature and Differential Pressure)
- 1-inch LED display
- Visual LED and Hooter sound option
- BACnet, Analogue and Modbus output options available
- Variants include with sensor, remote sensor and wihtout sensor
DOWNLOAD Datasheet

H7080 SERIES

Temperature/Humidity Duct Sensor
- 4~20mA/ 0~10VDC or resistance output for temperature
- 4~20mA/ 0~10VDC output for humidity
- Duct mounted
- Excellent linearity
- Good long term stability
- High reliability
- Wide sensing range
- Easy installation
DOWNLOAD Datasheet

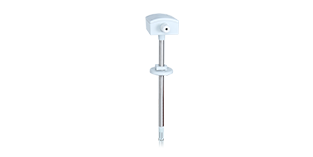

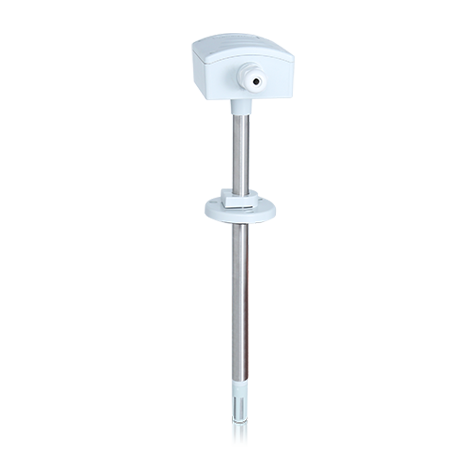

H7080B

Temperature/Humidity Duct Sensor
- 4~20mA/ 0~10VDC or resistance output for temperature
- 4~20mA/ 0~10VDC output for humidity
- Duct mounted
- Excellent linearity
- Good long term stability
- High reliability
- Wide sensing range
- Easy installation
DOWNLOAD Datasheet

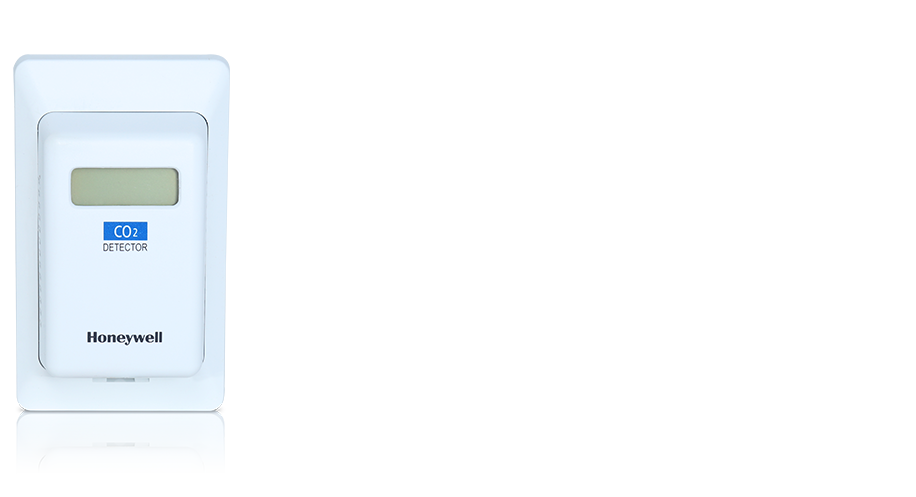

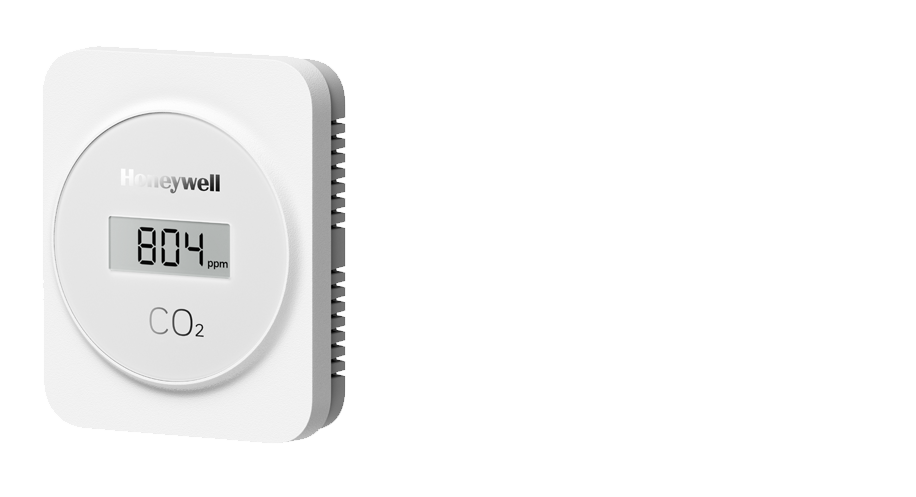

CDS Sensors

CDS2000A3000C/CDS2000
- High realibility and sensitivity based on Non dispersive infrared (NDIR) technology
- Optional LCD display and On/Off relay output for CO2 limit monitoring
- Optional Modbus Communication
- Two types Analogue signal (DCV and DCA) output
- CE certified
DOWNLOAD Datasheet

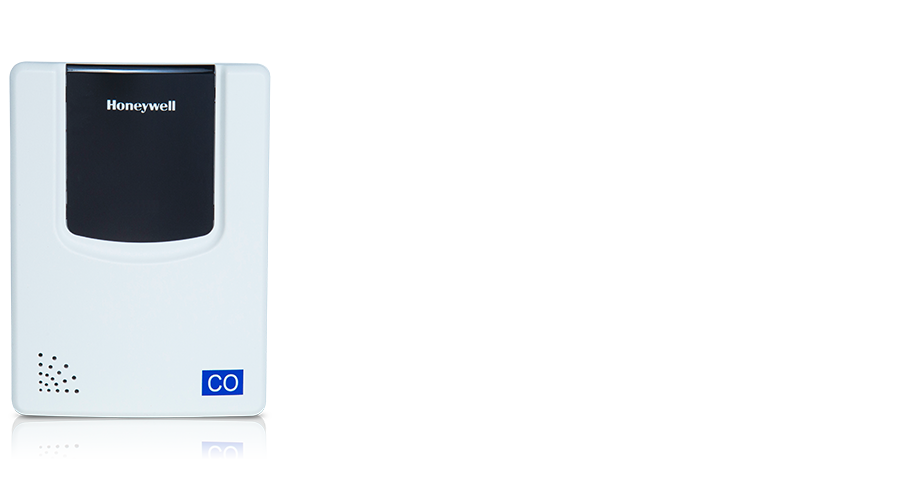

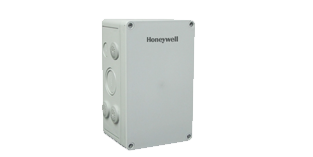

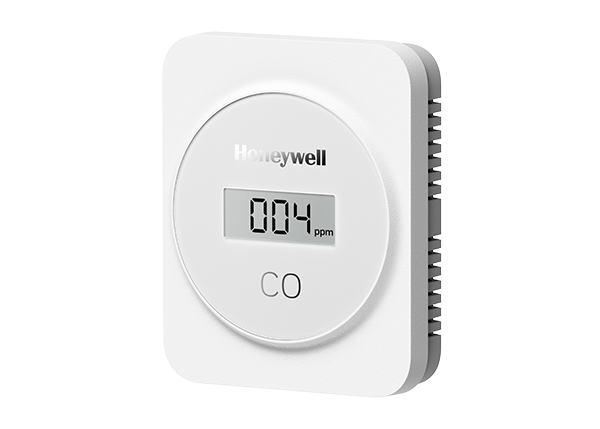

GD250 Series

CO Transmitter
- 4~20 mA, / 2~10 VDC Mod-bus output
- Option for Electrochemical sensor
- LCD display option for both Space
- Various mounted types selectable
- CO range is selectable in one model
- High reliability and accuracy
- Wide sensing range
- Rapid response
DOWNLOAD Datasheet

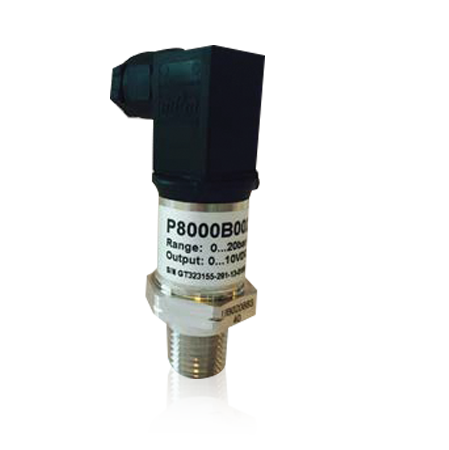

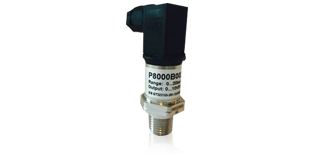

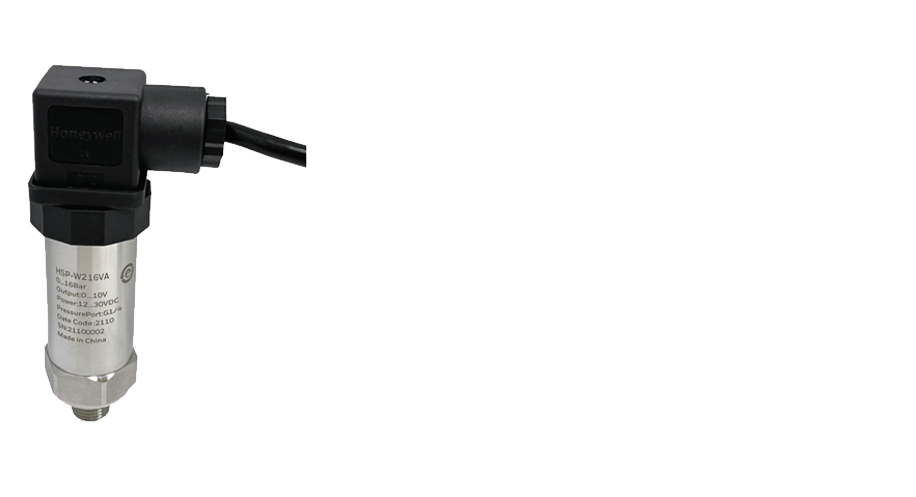

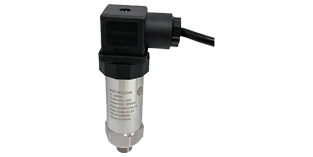

P8000

Pressure Transmitter
- Applicable in gas & liquid media
- High accuracy
- Thermal compensation
- Compact construction
- Full mis-wire protection between all signal and power lines
- Stainless steel wetted part
DOWNLOAD Datasheet

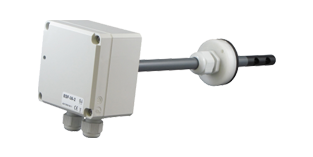

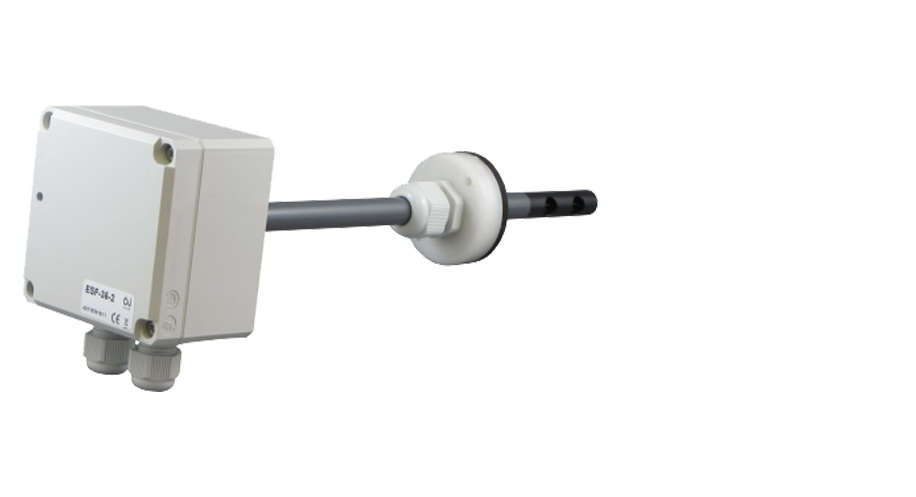

H-ESF-2

Air Flow Transmitter
- Converts airspeed into a 4-20mA or a 0-10 VDC signal
- Linear output signal
- Made with corrosion resistant material
- Fully electronic registration of airflow speed
- AC or DC voltage supply
- Compensates for changes of air temperature
- Telescopic sensor facilitates installation
- Temperature output signal 0 - 10 VDC
- Fuse protected
DOWNLOAD Datasheet

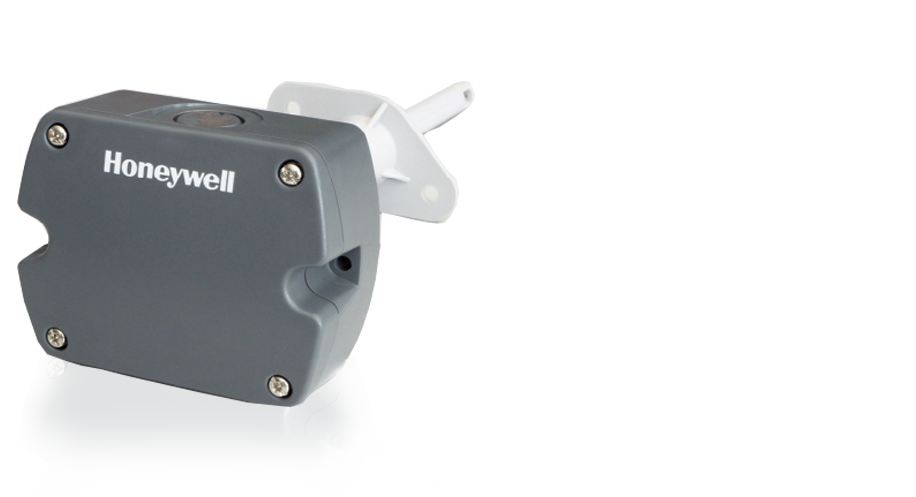

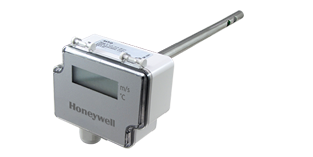

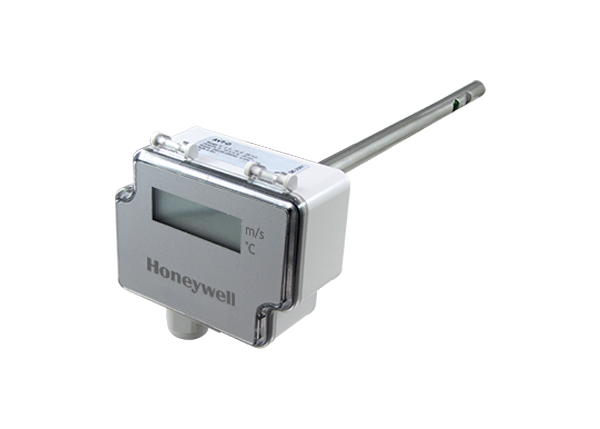

AV-D-10/AV-R-10

Air Velocity Transmittters
- Highly accurate measurement of air velocities of up to 20 m/s (2000 ft/min)
- Mounting flange permits continuous adjustment of immersion depth at duct
- Response time (t90), measuring range, and output signal (0…10 V / 4…20 mA) can all be independently reset by shifting jumpers on the circuit board
DOWNLOAD Datasheet

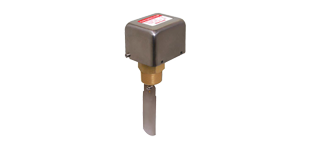

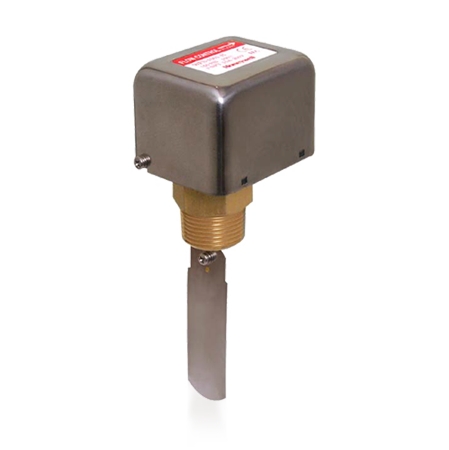

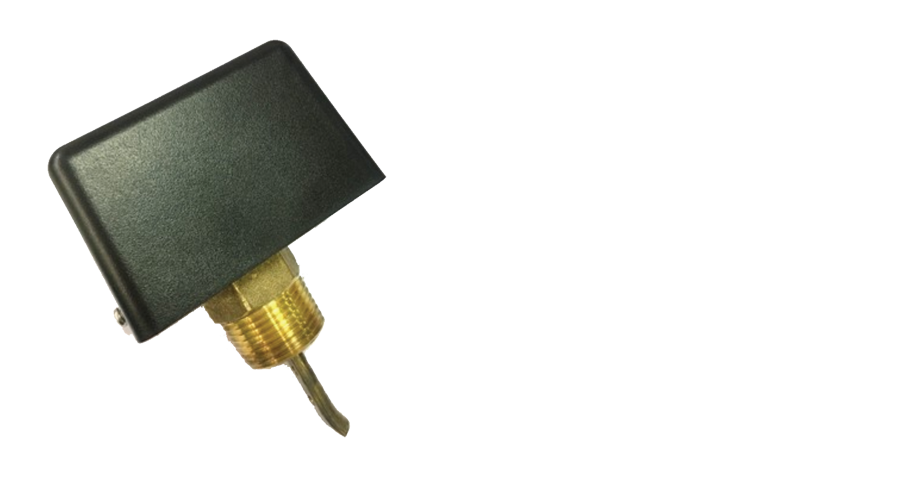

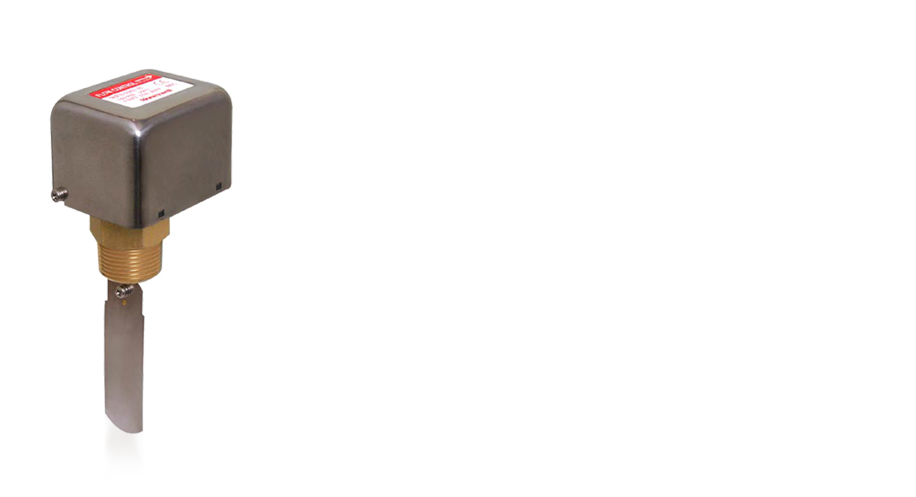

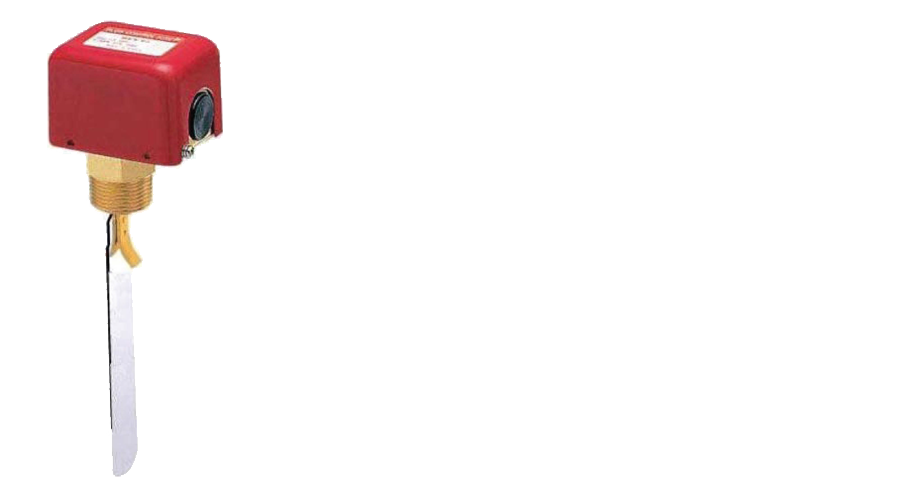

WFS Series

WFS-1001-H, WFS-1002-H, WFS-1003-H, WFS6000
- May be used for liquids with high salt or Chlorine content but is nto for use in hazardous atmosphere
- Can be used outdoors from must be protected from weather or splashing water
- Can be used only as operating control
DOWNLOAD Datasheet

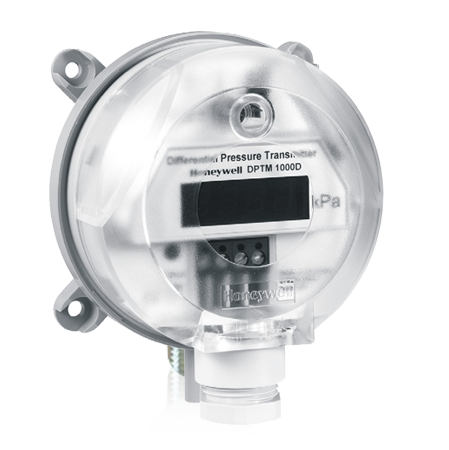

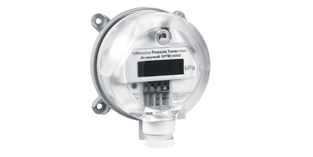

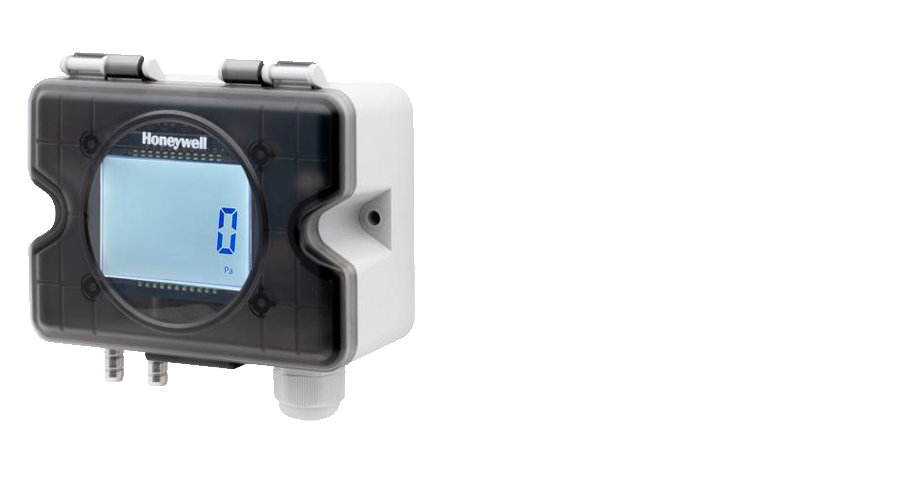

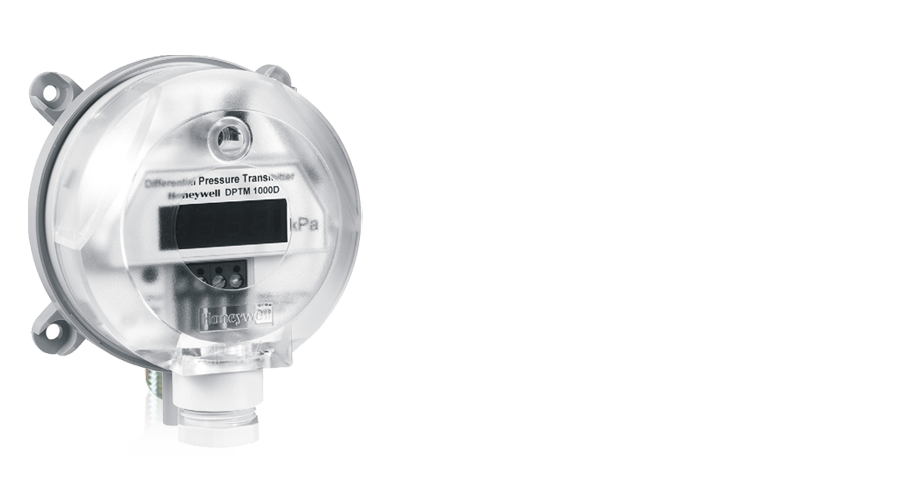

DPS/DPTE

3-Wire Differential Pressure Transmitters With Current And Voltage Output

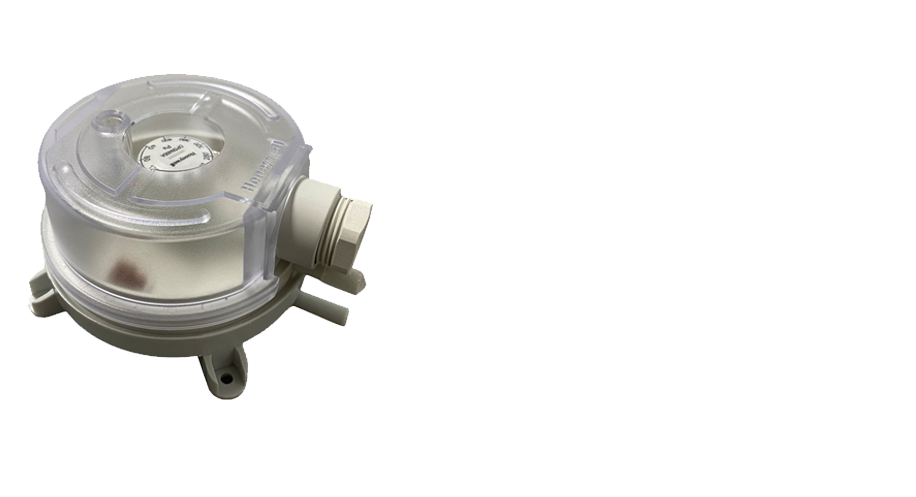

- Differential Pressure Switch (Air)
- DPS used for monitoring filter, fan, fire damper or air flow status of air handlin systems
- Max Operating pressure - 10 kPa
- Media - Air, Non-flammable gases and non-aggressive gases
- IP54 protection
- Integrated in bottom housing
- Medium Temp - (-20)...+85°C; Storage Temp - (-40) to +85°C
- Differntial Pressure Transmitter (Air)
- Monitoring gaseous, non-aggressive media
- Piezo-resistive pressure transducer
- Up to 20 kPa (60 kPa) overload capacity
- Easy installation and wiring connection
- Measuring range adjustable by jumper
- Response time and Output signal adjustable by jumper
DOWNLOAD Datasheet

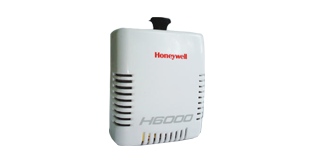

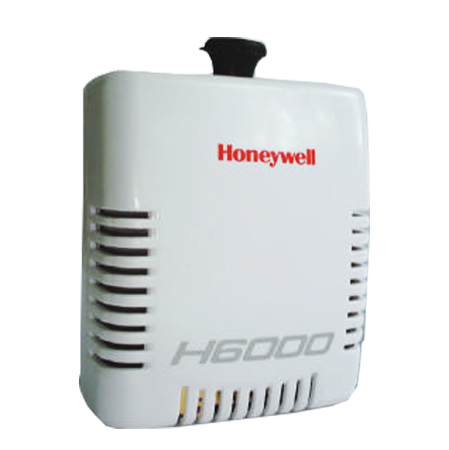

H6000

Humidity Controller
- Long nylon ribbon sensing element provides high driving force to assure reliable operation, even under changing ambient temperature conditions
- Housing encloses the snap-acting switch with ¼ in. quick-connect terminals. Switch rated for line voltage and pilot operation
- Shaft for adjusting the control point located on top of the device
- Positive ON and OFF setting positions permit manual operation of the controlled equipment
DOWNLOAD Datasheet

Applications Areas

One product, many applications

Hospitality

Commercial Buildings

Hotels

Hospitals

Factories
