Smart surveillance made in India with  world-class technology Smart surveillance made in India with  world-class technology
Intuitive control with built-in
cybersecurity
Easy to install and use controller with closed backdoor to IT networks
Smart surveillance made in India with  world-class technology Smart surveillance made in India with  world-class technology
Flexibility in control, that goes
beyond "smart"
Simplified integration, routing, and control, even for new hires
Smart surveillance made in India with  world-class technology Smart surveillance made in India with  world-class technology
Simplified integration,
routing, and plant control,
even for new hires
Simplified network deployment with daisy-chaining to improve fault tolerance

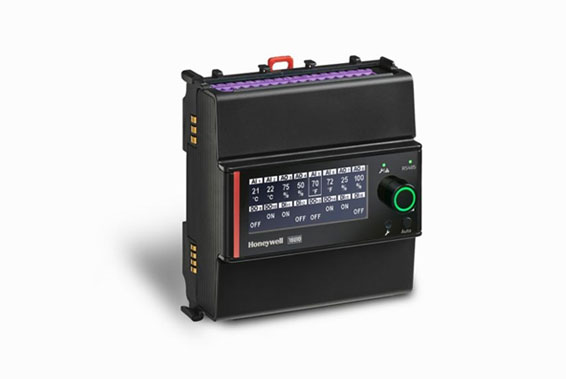

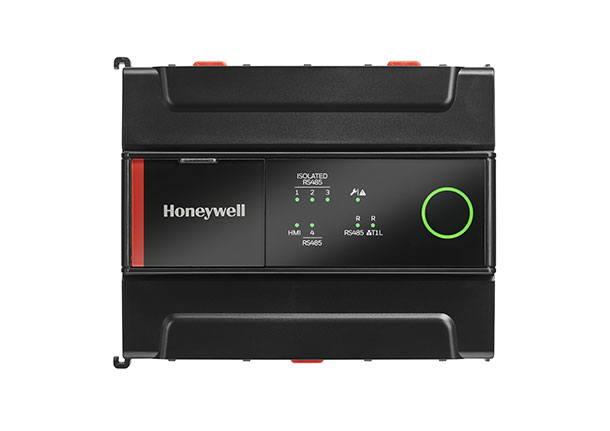

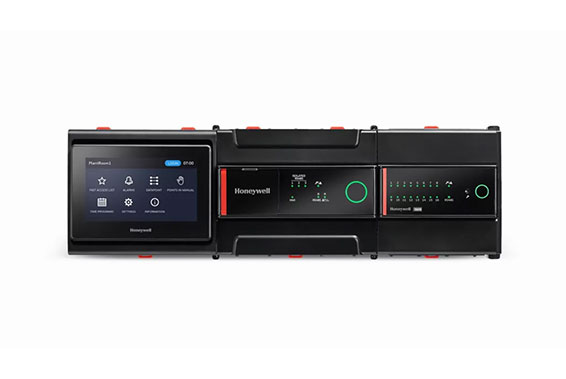

Optimizer Advanced Controller

Optimizer Advanced offers next generation integration and control for mid-size to enterprise level customers. It combines easy installation and use, the ability to add functionality without rip-and-replace, and built-in cybersecurity to protect operational technologies (OT), closing the backdoor to IT networks.

Advanced Building Control That’s Simple and Cybersecure
Integration, routing, and advanced control
  • Cloud-based remote management to Honeywell or third-party systems
  • Daisy-chaining for simplified network deployment
  • Hand-Off-Auto (HOA) display to manage local I/O channels and overrides, with or without controller
Lower installation and lifecycle costs
  • Remove and service I/O modules without moving adjacent modules or rewiring
  • Modular and universal I/O types
  • Removable color-coded terminal blocks
  • Compatible with legacy Honeywell Panel Bus I/O modules
Effortless Connectivity and Expansion
  • Send and receive more data, more securely, via IP
  • Manage sustainability and building health
  • Rigorous cybersecurity to protect BMS and OT systems
Technology and Features

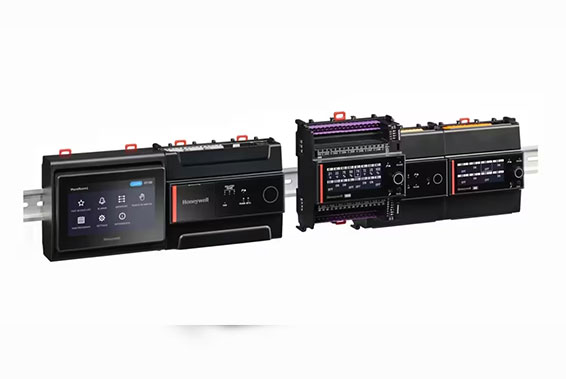

Optimizer advanced controllers feature RS485 channels for BACnet™ MS/TP, Panel Bus, Modbus RTU, M-Bus, and I/O module devices, Ethernet ports for BACnet™ IP devices, and a RJ11 interface for HMI devices. These controllers also have touch flakes to connect with multiple I/O modules in series and a USB Type-C interfaces to connect with a computer for serial communication. These controllers can be mounted on either a DIN rail or on the wall mounted in either horizontally or vertically orientations.


Optimizer advanced controllers incorporate the Niagara framework and are powered by an IMX8 64bit quad-core processor. The IP devices are programmable with dedicated I/O modules with extremely flexible control options - such as both Ethernet and Serial integration options native to BACnet™ Building Controllers.

  • Simple & Flexible Engineering

    • Conforms to BACnet™ Standard 135 protocol version 1.15 (ISO 16484-5).
    • RJ11 interface to connect with an HMI device for field operations.
    • Support Peer-to-Peer communication.
    • Supports automatic IP address assignment.
    • Supports IPv6.
  • Onsite Efficiency & Safety

    • Multi-color LEDs to show the operational status and service state of the controller.
    • Built-in advanced diagnostics software for troubleshooting
    • Ferroelectric RAM (FRAM) to store the live controller data.
    • Ubuntu Core OS with snap container based modular software design (Cyber Secure).
    • Processor capable of future development of low latency AI & Machine Learning algorithms at the Edge.
    • Cyber secure with IEC 62443-4-2 Certification.
  • Easy to Upgrade

    • All RS485 channels support Panel Bus, BACnet™ MS/TP, Modbus RTU, and M-Bus.
    • Removable terminal blocks with screw or push-in terminals.
    • Built-in Web server with HTML5 to support graphics.
    • Supports for Azure IOT remote device management and update services.
Benefits
  • Easy to Install & Upgrade
  • Highly Fault Tolerant
  • Robust Cybersecurity
  • Easy Remote Management
  • Built-in Diagnostics
Certifications
  • Protection Class: IP20
  • Product Standards: UL60730-1, UL60730-2-9, UL916, IEC/EN60730-1, IEC/EN60730-2-9, CAN/CSA-E60730-1:02, IEC/EN61326-1, and IEC/EN61010
  • Testing Electrical Components: IEC68
  • Certification: UL60730-1, UL916, CE, BTL B-BC, BACnetTM Standard 135 version 1.14, ISO 16484-5, FCC Part15, Subpart B, CAN ICES-3(B)/NMB- 3(B), RCM, AMEV AS-B, KBOB, EAC, RoHS II, Ethernet Protocol version IEEEC 802.3, EN-1434-3 and EN-13757-3
  • Cyber Security Certification: IEC 62443-4-1 2018 Secure product development lifecycle requirements, ANSI/SA-62443-4-2:2019 Technical security requirements for IACS Components
  • UL Certification
Optimizer Advanced Controller For Buildings

Advanced and User-Friendly Command and Control in Buildings, That’s Easy to Upgrade.

Powerful But Simplified Building Management, Across Applications
Corporate Offices
Datacenters
Healthcare Facilities
Hospitality
Educational Campuses

Upgrade legacy buildings to smart sites, or digitalize new developments

Integrate real-time inputs from building automation, to enable data-driven decision making and demand-led energy management, at scale.
